Flatbed Trailer / 平板挂车
Flatbed & Container Trailers
Standard and container flatbed trailers for 20ft, 40ft, and 45ft containers. Available in 2-axle and 3-axle configurations — built to the highest standards for African road conditions.
Standard and container flatbed trailers for 20ft, 40ft, and 45ft containers. Available in 2-axle and 3-axle configurations — built to the highest standards for African road conditions.
| Specification | Details |
|---|---|
| Overall Length | 12.5m (40ft) / 13.75m (45ft) / 16.5m (extendable) |
| Overall Width | 2.5m (standard) — 2.55m (custom) |
| Loading Length | 20ft / 40ft / 45ft container compatible |
| Axles | 2-axle (16-25 tons) or 3-axle (40-60 tons) — FUWA or BPW |
| Payload Capacity | 30 - 60 tons |
| Suspension | Mechanical spring (standard) / Air-ride suspension (optional) |
| Tires | 12R22.5 (tubeless radial) — 8 pcs (2-axle) / 12 pcs (3-axle) |
| Kingpin | 2.0" or 3.5" — JOST brand |
| Landing Gear | 28-ton capacity — JOST brand, 2-speed |
| Brake System | Dual-line air brakes with ABS — WABCO valves |
| Container Locks | 12 twist locks (flip-up type) — ISO standard |
| Main Beam | Q345B high-strength steel — I-beam 500mm height |
| Paint | E-coating (anti-corrosion) + top coat — any RAL color |
| Electrical | 24V LED lighting system — 7-pin plug |
| Warranty | 12 months structural warranty |

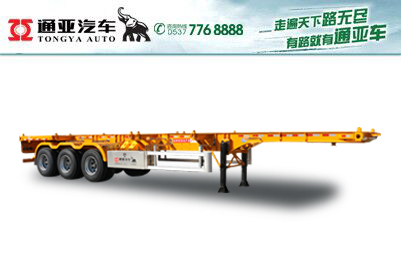

Specialist in container trailers with robotic welding technology. Tongya's flatbed trailers feature precision-cut main beams, automated assembly lines, and strict QC processes. Their container trailers are designed for ISO container transport with 12-point locking systems and reinforced cross members.

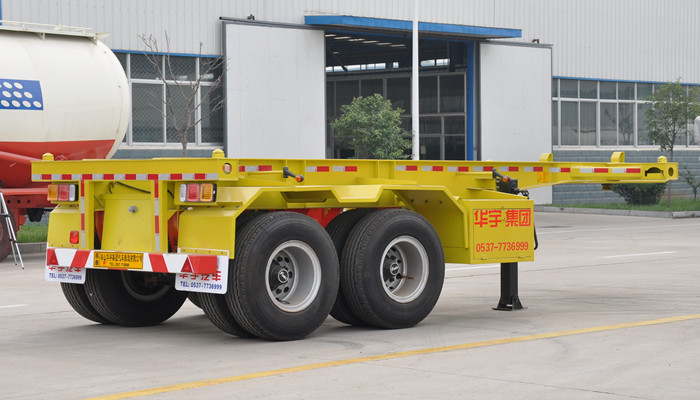

Heavy-duty flatbed trailers engineered specifically for African road conditions. Huayu uses thicker steel plate, reinforced suspension brackets, and heavy-duty spring packs. Their flatbeds are field-tested in West and East African markets with proven durability.
All main seams are welded by robotic arms for consistent penetration, strength, and perfect bead appearance — no porosity or weak spots.
Full chassis e-coating (electrophoretic paint) provides superior anti-corrosion protection, essential for tropical and coastal African environments.
12 ISO-standard twist locks with flip-up mechanism allow fast container loading/unloading. Compatible with 20ft, 40ft, and 45ft containers.
FUWA or BPW axles with 12R22.5 tires rated for 60-ton payloads. Drum brakes with automatic slack adjusters for reliable stopping power.
Contact us for a tailored quote. We'll help you choose the right configuration for your specific needs — container type, axle count, and optional upgrades.
